Bluevolution

The new generation of wide BLUEVOLUTION profiles (92 mm) demonstrate the perfect combination of innovative techniques with conventional technology, leading to a fresh development direction for modern windows. The unrivalled values of their Uf insulation provide the best possible thermal protection. Low casing height and the classic, elegant shape meet the aesthetic requirements of every customer.



ECONOMY
Better thermal insulation, due to modern window panel sets of up to 60 mm thickness
Uf = 1.0 W/m2K for a frame and casement with standard reinforcement
Uf = 0.9 W/m2K for a frame and casement with thermal reinforcement – the only 92 mm casing depth profile with such a low thermal insulation power figure

STABILITY
Safe holding of the thick window panel set load due to specially-designed chambers and strong reinforcements

TIGHTNESS
Triple sealing system, two sealing gaskets and a middle gasket

ELEGANCE
Subtle, rounded casements and low folding profiles of 118 mm height
A single, standard system for both white and coloured windows, without functional limitations

QUALITY
RAL A (A-class) for any thickness of wall and the highest German quality and performance

FOR THE ENVIRONMENT
100% recyclable due to the use of high quality materials and steel reinforcements as standard

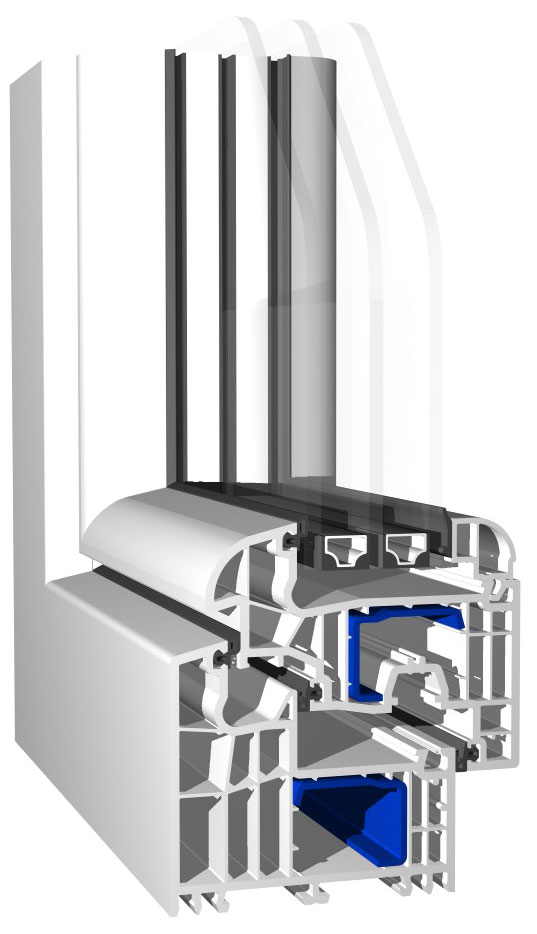

bluEvolution with a classic straight casement
STANDARD FITTINGS OF BLUEVOLUTION WINDOWS

  • six-chamber frame and six-chamber casement
  • frame 92 mm wide, casement 103 mm wide (round) / 92 mm wide (straight)
  • 3-gasket system – two sealing gaskets and a middle gasket
  • rounded skirting strip
  • black or grey gasket from TPE material
  • energy-saving triple-glass pane set with k=0.5 W/m2K coefficient
  • ROTO NT fittings
  • micro ventilation –micro ventilation fastening provides constant air flow
  • false handle position barrier – with an integrated guide rail, this prevents hanging of the casement and simultaneously blocks hanging of an open window
  • Roto handles in white, or adjusted to the colour of the veneer
  • glazing board which guarantees safe transport and makes window sill assembly easier
   ADDITIONAL FITTINGS:

  • handle brake
  • hanging gradation
  • friction brake
  • balcony catch
  • handle with key or button
  • AERECO-supplied air outlets
  • wide choice of glass pane sets
  • a variety of anti-intrusion systems
  • gasket – the glass rebate filling provides protection against dirt and makes window maintenance easier
