Streamline 76

High quality PVC SALAMANDER profiles have been leading European technical progress and production quality for a long time. STREAMLINE 76 windows have an attractive, rounded profile, which gives the room cosiness and simultaneously reduces energy consumption. Made with modern window technology, these feature a five-chamber system, 76 mm-deep profiles, two gaskets and a high resistance to dirt and harmful atmospheric conditions.

STREAMLINE 76 windows, aside from the standard, shining white profile, are also available in a wide palette of smooth colours and wood-effects (including precious woods, in single- and double-sided veneers).



PERFECT FORM

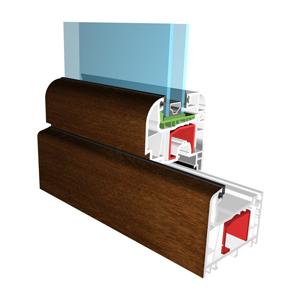

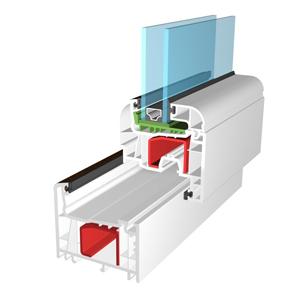

the connection of an elegant, rounded five-chamber casement (82 mm casing depth) with a five-chamber window frame (76 mm casing width)

UNIQUE WHITENESS
snow-white, shining profiles made from high-class PVC materials; easy to clean and maintain, and resistant to harmful atmospheric conditions

WIDE GLAZING POSSIBILITIES
it is possible to apply all available glazing types, up to a width of 48 mm

STRONG STEEL REINFORCEMENTS
guarantee stability of the shape and a long functional life

FRAME AND CASEMENT STRUCTURE
the connection of two high quality gaskets ensures great thermal and sound insulation

QUALITY
RAL A (A-class) for any thickness of wall

FOR THE ENVIRONMENT
100% recyclable due to the use of high quality materials and steel reinforcements as standard
STANDARD FITTINGS OF STREAMLINE 76 WINDOWS

  • five-chamber frame and five-chamber casement
  • frame 76 mm wide, casement 82 mm wide (round) / 76 mm wide (straight)
  • 3-gasket system – two sealing gaskets and a middle gasket
  • rounded skirting strip
  • black or grey gasket from EPDM material
  • 4/16/4 glass pane set with k=1.0 W/m2K coefficient
  • ROTO NT fittings
  • micro ventilation – micro ventilation fastening provides constant air flow
  • false handle position barrier – with an integrated guide rail, this prevents hanging of the casement and simultaneously blocks hanging of an open window
  • Roto handles in white, or adjusted to the colour of the veneer
  • glazing board which guarantees safe transport and makes window sill assembly easier
  ADDITIONAL FITTINGS:

  • handle brake
  • hanging gradation
  • friction brake
  • balcony catch
  • handle with key or button
  • AERECO-supplied air outlets
  • wide choice of glass pane sets
  • a variety of anti-intrusion systems
  • gasket – the glass rebate filling provides protection against dirt and makes window maintenance easier

OUR WINDOWS ARE:

  • brilliantly white, with a smooth, shiny surface
  • available in a wide range of colours
  • attractive and exceptionally durable
  • resistant to light and atmospheric conditions
  • resistant to mechanical actions
  • easy to clean and maintain
